ACROW Alu Deck Panels System
System Description :

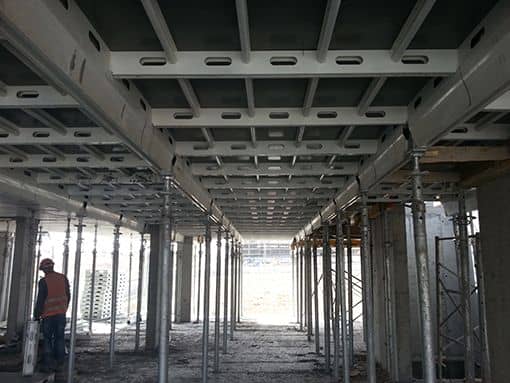

ACROW ALU-DECK Panel System is a modern modular Aluminum formwork system that provides early striking. It cuts significant portions of the waiting times for dismantling, thus saving time and money.
It is a man-handling system with lightweight panels and few components, designed to reduce assembly & dismantling times and to minimize handling mistakes with high safety standards.
It suits large areas with uniform layouts and several pouring cycles. It is best used for repetitive housing projects, especially high-rise towers.
System Application :
- Slabs System
Features :
Time saver
- Superior Concrete Finish
- Simple Assembly
- Medium Duty
- Man Handle
- Early Striking
- Limited Items
Advantages :
- The system's simplicity reduces the handling mistakes.
- Safer for workers.
- The beams and panels are all made of aluminum and are powder-coated.
- Reduction of the labor cost.
- Economic and safe solution for slab formwork.
System Main Components :
- Aluminum panel c/w. PVC boards
- AD filler
- Safety handrail
- AD main beam
- AD drop head
- Alu Props for standard shoring
- Ring lock for alternative shoring
System Capacity :
Technical Data :
- Slab thickness: Up to 50cm] Depending on grid size [.
- Panel widths:40 I 60 l 75cm.
- Panel lengths: 75 l 90 l 150 l 180cm.
- Main beam lengths: 90 l 120 l 150 l 180 l 210 l 240 l 330 cm.
- Painting: Electrostatic powder – coating for panels and beams & hot dip galvanized heads.
- Standard panel covering: Acrow board (12 mm).
- Standard shoring: Alu prop with] working load up to 80 KN [ & Euro prop AEP] with working load up to 30 KN [.
- Alternative shoring types: Ring lock.
