ACROW Prop Table Form System

System Description :

Acrow Prop Table Form System is one of the fastest slab systems. Over 30+ years of production, Acrow Prop System has fulfilled all client requirements.

The prop consists mainly of two telescoping steel tubes that enable any adjustments needed to suit the site conditions.

System Application :

High-rise building slabs
Repetitive housing projects
Large-scale horizontal projects (malls, universities, administration buildings, ...etc.) with regular heights

Features :

Cost Effective

Highly Worked

Time saver

Easy and practical to set up and can be shifted very quickly.
Movable
Early Striking

Advantages :

Easy and practical to set up.
Cost-effective and efficient for large-area slab projects and heights up to 5m.
Wedge lock allows quick and easy props handling.
Low stacking height when transported and stored.
Safe, fast-shifting appliances, saving time and money.
Seamless forming continuation into infill zones and closure gaps.
High speed due to advanced technical components.
Available commissioning quantities on weekly cycles.
High load capacity with AEP (Acrow European Prop).

System Main Components :

H20 Beams
Table head & connections
Euro/Eco props

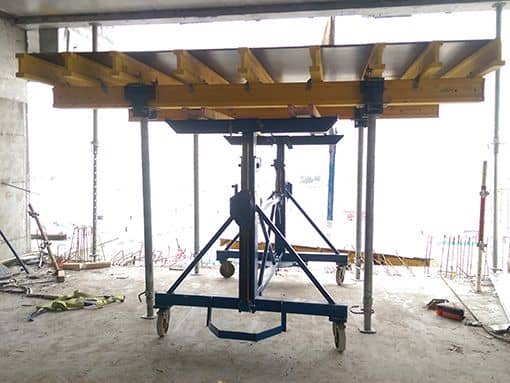

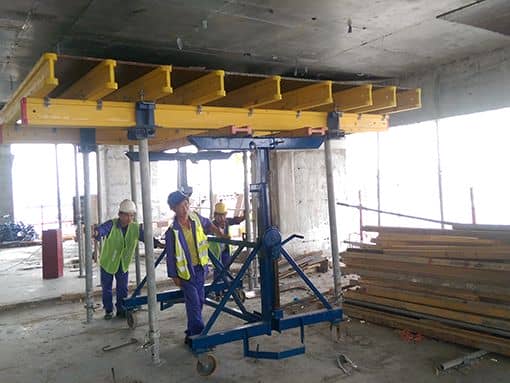

Shifting trolley (striking)
C-Fork (lifting)

Technical Data :

Shoring system: hot-dip galvanized AEP props.
Working load: AEP prop 20 or 30 KN (in accordance with EN 1065 – class D/E).
Table range: table lengths of 4.00 m or 5.00 m and widths of 2.15 m, 2.5 m, 2.65 m & 2.9 m.
Slab Thickness: 40 cm with only 4 props, thicker slabs with additional support.
Slab height: up to 4.5m.
Assembly: Pre-assembled and ready for use at the job site.
Transportation: lifted with a crane to the job site after assembly, and easy to move.
