ACROW Crane Climbing (ACCS 240 & ACCS 160) System

System Description :

ACROW Crane Climbing is an ideal climbing system for skyscraper and high-rise buildings, such as lift-shafts, stairwells, perimeter façade walls, and large section piers in bridge construction.

The ACCS is also a suitable platform for formwork operation and the concrete curing process.
The ACCS 240 climbing scaffold system is typically used in shoring to support anchored wall formwork.

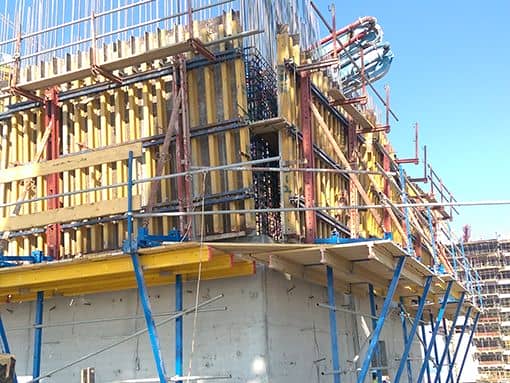

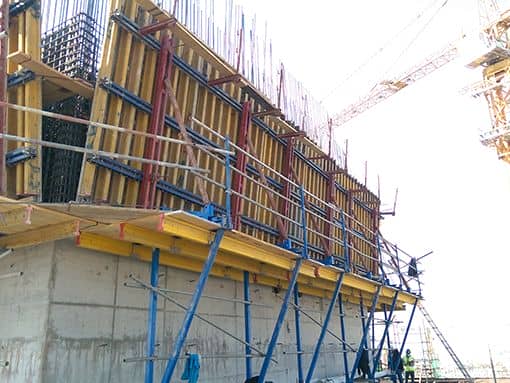

The formwork is firmly connected to the scaffolding and moved as a crane unit. It can also be used as a working scaffold only. The working platform consists of planking, platform beams, and two fixed climbing brackets.

Features :

Tailored

Durable

Highly compatible

Time saver

Has 3 Access levels
Safe against high wind load.
Multiple ways of usage
Accordance with EN 12812
Great space and flexibility for workers

Advantages :

The bracket in the climbing unit is adaptable for wall heights up to 5.2m.
The formwork panel & platform can be lifted as one unit to accelerate work, reduce labor and crane costs, and save the working area.
ACCS 240 is retractable, allowing 60cm work space for formwork cleaning and anchor fixation.
ACCS 160 is fixed with an adapter unit to tilt the shutter and move it to the next stage.
Suitable for straight and curved walls.
Lower access platform C/W access ladder.
The carriage can easily retract the wall form to about 70cm from the poured concrete wall.
