ACROW Flex System

System Description :

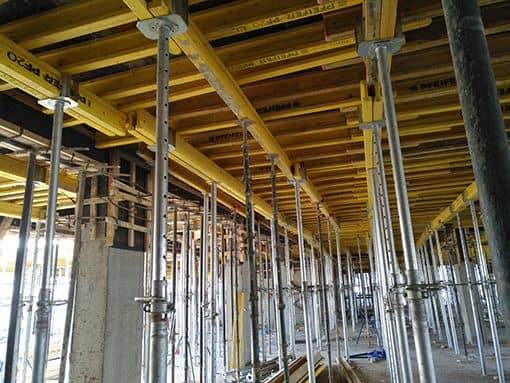

ACROW Flex is a slab formwork system that could be adapted to any floor plan and consists mainly of one of three types of props provided by Acrow; Euro prop, Eco-prop or light prop with H20 wooden beams that work as primary and secondarglobal-footprinty girders. ACROW Flex is mainly used when shoring heights up to 4.5m.

System Application :

Slabs system for residential buildings and housing

Features :

banner

Cost Effective

banner

Highly Worked

  • Limited Items
  • Man Handle

Advantages :

  • It requires few system components, only H20 girders, props, fork heads and prop legs.
  • ACROW Flex is the cost-effective solution for slabs of thickness up to 50cm.
  • Easy to handle with no loose connecting parts.

System Main Components :

  • H20 girders (Main & secondary)
  • Cross head, prop hanger
  • Props (Euro props/ Eco props/ Alu props/ light
    props)
  • Cross head, prop hanger
  • Prop leg (assembly tool)

System Capacity :

  • Euro prop: up to 40kN
  • Eco prop: up to 20kN
  • Light prop: up to 10kN

Technical Data :

  • Euro prop: up to 40kN
  • Eco prop: up to 20kN
  • Light prop: up to 10kN
